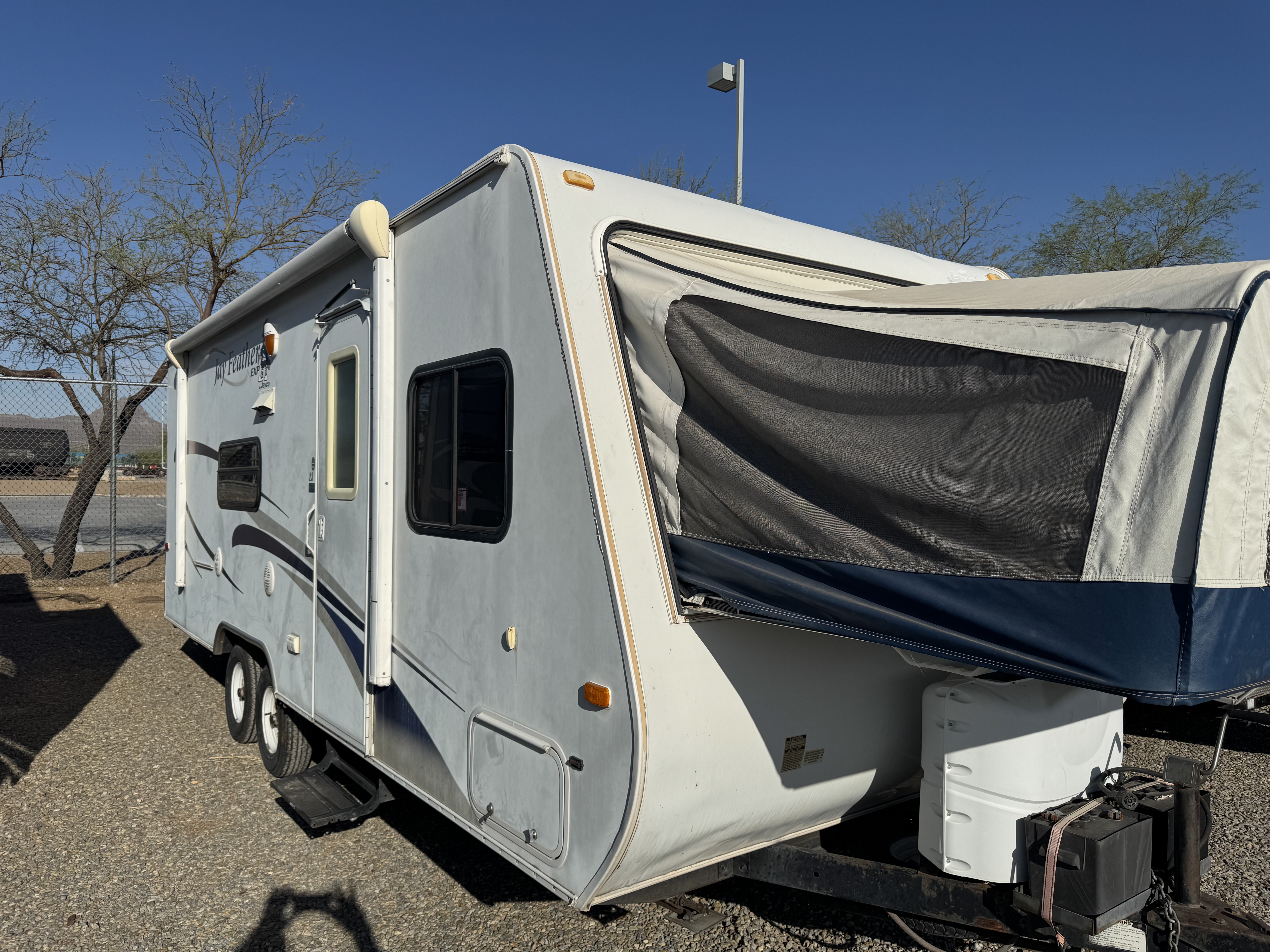

The 2009 Jayco Jay Feather 23B is a popular lightweight expandable travel trailer (often referred to as a "hybrid" trailer), designed to offer the spaciousness of a larger RV with the convenience of a compact, easy-to-tow unit. As part of Jayco's well-regarded Jay Feather line, the 23B floor plan is celebrated for its versatile sleeping arrangements and efficient use of space, making it an excellent choice for families seeking adventure without a heavy-duty tow vehicle.

If you're searching for an affordable used travel trailer, a family-friendly RV, or a hybrid camper that can expand to accommodate more people, the 2009 Jayco Jay Feather 23B provides outstanding value in the pre-owned RV market.

2009 Jayco Jay Feather 23B Specifications: Your Versatile Expandable Travel Trailer

Overview & Key Features:

• Expandable Sleeping Capacity: The "B" in 23B often denotes "beds" or "bunk ends." This model typically features two expandable tent-end beds (often queen-size), allowing it to sleep a surprisingly large number of people for its compact travel size.
• Lightweight & Easy to Tow: Designed with lighter materials and an aerodynamic profile, the Jay Feather 23B is an ultralight travel trailer that can be towed by many half-ton trucks and some larger SUVs, enhancing its accessibility.
• Efficient Interior Layout: The 23B floor plan usually includes a comfortable dinette, a functional kitchen, and a full bathroom, all efficiently placed to maximize living space when the beds are deployed.
• Slide-Out (Optional/Varies): Some 23B configurations might feature a small slide-out for the dinette, further enhancing interior room (verify on specific unit).

Dimensions & Weights: Built for Maneuverability and Light Towing

• Exterior Length: Approximately 24 ft 7 in.
• Exterior Width: 8 ft (96 inches).
• Exterior Height (with A/C): 10 ft 1 in to 10 ft 5 in.
• Interior Height: 6 ft 6 in.
• Dry Hitch Weight: Approximately 425 lbs to 495 lbs.
• Unloaded Vehicle Weight (UVW): Approximately 3,700 lbs to 3,900 lbs.
• Cargo Carrying Capacity (CCC): Approximately 1,100 lbs to 1,300 lbs.
• GVWR (Gross Vehicle Weight Rating): Often 5,000 lbs.
• Axle Count: 2 axles (providing enhanced stability during towing).
• Tire Size: ST205/75R14C.

Tank Capacities: Prepared for Your Adventures

• Fresh Water Capacity: 30 gallons.
• Grey Water Capacity: 23 gallons.
• Black Water Capacity: 23 gallons.
• LP Tank Capacity: 40 lbs (two 20lb tanks).
• Water Heater Tank: 6 gallons (Gas/Electric DSI).

Appliances & Utilities: Essential Comforts for Camping

• Refrigerator: 3 cu ft or 6 cu ft Gas/Electric Refrigerator (size varies by configuration).
• Cooking: 3-burner range with oven. Microwave oven.
• Furnace BTU: 20,000 BTU.
• AC BTU: 13,500 BTU roof-mounted A/C.
• Electrical Service: 30 Amp service.
• Awning: Patio awning.
• Entertainment: AM/FM CD player. TV antenna with booster.
• Stabilizer Jacks: Manual stabilizer jacks (4).
• Other: Outside shower.

Construction & Exterior: Jayco's Dependable Build

• Construction: Jayco's renowned Magnum Truss™ Roof System (often with a 90-inch-wide roof, fully walkable and 50% stronger than competition). TuffShell™ vacuum-bonded laminated sidewalls.
• Exterior Finish: Aluminum exterior skin. Front diamond plate rock guard.
• Frame: Integrated A-frame.
• Underbelly: Enclosed underbelly (optional, check specific unit).
• Towing: E-Z Lube® Axles. Galvanized steel wheel wells.
• Other: Double-wide aluminum entry step.

Interior Features: Practicality and Comfort

• Flooring: Durable linoleum flooring throughout.
• Cabinetry: Hardwood cabinet doors. Ball bearing drawer guides.
• Living Area: Booth dinette (converts to bed). Sofa (if present, may convert).
• Kitchen: Functional kitchen with sink, faucet, and basic storage.
• Sleeping Areas: Two expandable tent-end queen beds (typically 60" x 80").
• Bathroom: Full bath with shower, toilet, and sink. Power roof vent.
